Aluminum Camlock Couplings
Aluminum Camlock Coupling is an economical option for quick connect and disconnect coupling for many industrial fields,the camlock coupling finds versatility in its wide variety of uses all over the world. We can produce all types and also produce the coupling as your drawing.
Description

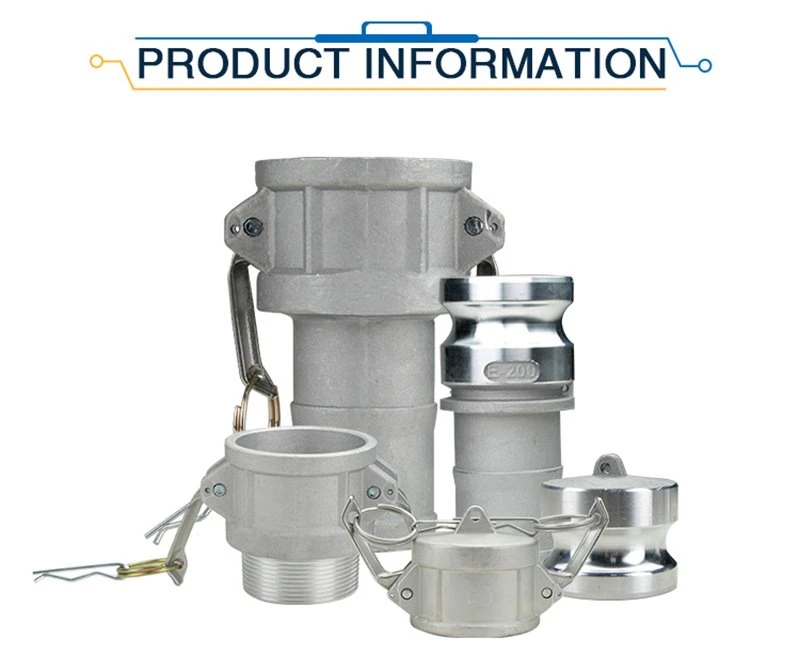

Aluminum Camlock Couplings are Medium pressure couplings for use where quick or frequent connection and disconnection is required. Used mainly for suction and delivery of petroleum products, chemicals, water and other liquid or dry products. The material for the camlock coupling is aluminium, nylon, PP, brass and stainless steel.
Material: | stainless steel316,304;brass;aluminium;PP;nylon. |
Place of origin: | China (mainland) |
Type: | A,B,C,D,E,F,DC,DP,DD,DA or as customer’s request |
Thread: | NPT, BSP, BSPT, We usually make the female thread parallel BSPP, |
Seal: | NBR,EPDM,V-i-t-o-n,PTEE envelop gastet |
Connection: | Male; female;(screw)thread; welding ;leather hose; |
Size: | 1/2",3/4",1",11/4",11/2",2",21/2",3",4",5",6",8",10",12" |
Gasket: | buna(NBR),v-i-t-o-n and T-e-l-f-o-n, silica |
Casting Method: | die casting and gravity casting |
Test pressure: | 1/2" 150PS;3/4"-2" 250PSI(17.6bar); 3"-4" 200PSI(14.8bar); |
Workmanship: | Precision casting or forged |
Application: | oil,petroleum,chemical,water,gas |
Packing: | Inner plastic bag, outer carton, then wooden pallet; |
Payment Terms: | T/T,L/C,D/P |
Delivery time: | 1 month |
Aluminum Camlock Coupling have many advantages, such as save time compared with flanged or thread fittings, no need to use the tools, and safety sealing for the liquid and powders, and also lightweight, durable. Every step of our production has a standardized process, and strict inspection, we hope to use our good quality, to win the satisfaction of every customer.
GOODWILL established in 1991, as one leading professional manufacturer and supplier in plumbing fittings line. We can supply various goods for the pipe fittings. For the Aluminum camlock couplings---one of our main product, we have the professional plant and equipment for production, the supply ability is about 5000pcs per month. We established the coordinated processes of manufacturing, inspection, marketing and after -sale service, to ensure the goods quality and the best service to our customers.
Because of its good abrasion resistant, light weight and economical cost, aluminum camlock coupling is used for water, hydraulic oil, coolants, gasoline and agricultural irrigation and so on.
If there’s any requirements or questions for the goods we supply, please feel free to contact us through website, we will reply asap.
The delivery time for the regular order, 1*20GP, is about 30 workdays, if any special requirements please kindly contact us for the details.
Payment: T/T, L/C at sight. Or other payment method please contact us in advance, thank you.
Our standard export packing for the Aluminum camlock coupling is Inner plastic bag, outer carton, then wooden pallet, or we can also make the package as customers’ requirements. All of these packages are strong and durable, also suitable for long time sea transportation.
