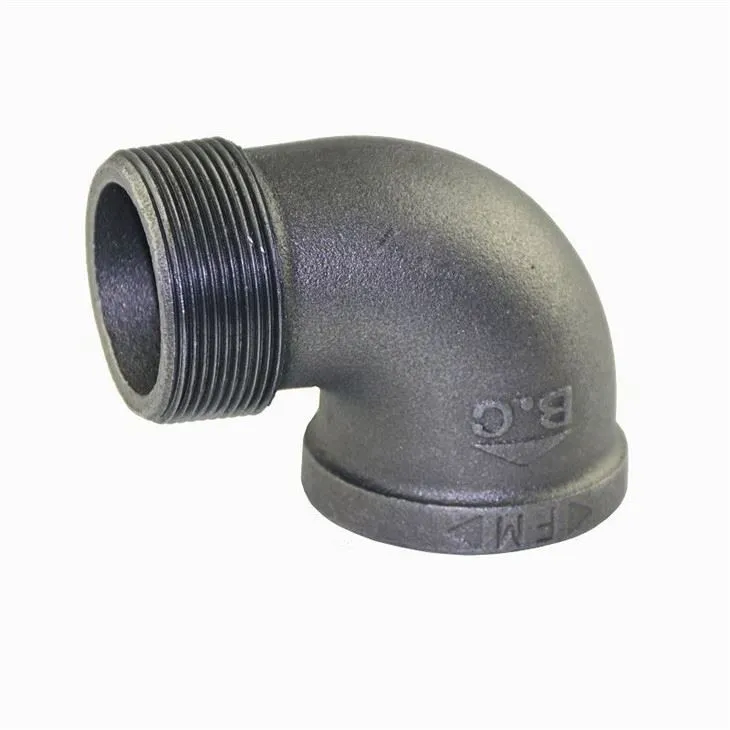

Elbow 90° Black Malleable Iron Pipe Fittings
Black Malleable Iron Pipe Fittings With All Kinds Of Types , Used For Pipe Connection ,For Example The Water , Gas , Oil Etc . Long Service Life And Competitive Price ,It’s The Better Choice .
Description
Main Specification For Reference :
Item : | Equal Tee |
Item Code ： | 130 |
Material: | Malleable Iron |
Type ： | Banded |
Sueface Treatment : | Hot Deep Galvanized |
Galvanized Thickness | 70μm Min |
Thread Standard : | Iso 7-1 (Bs Or Europe Stardand) |
| Asme B. 1.20.1 (American Standard) | |
Process Craft : | Casting |
Malleable Iron Pipe Fitting Chemical Properties :
Chemical Properties (%) | |||||
C | Mn | P | S | Si | Iron And Others |
2.4-2.8 | 0.5-0.6 | 0.1Max | 0.1-0.2 | 1.2-1.4 | 94.9-95.7 |
Mechanical Properties | |||||
Ts Kgs/Mm2 | E.L.(%) | ||||
30-33 | 9-11 | ||||
Details Show :
The All Pipe Fittings With Full And Smooth Threads ,Flat Ends As Per International Standard ,Good Tightness . Clear Brand Logo And Fm Approved On The Fittings’ Body ,Available For Projects .
Quality Test :
1. Automatic Production ,Standard Unite Weight ,Uniform Wall Thickness
2. Standard Threaded Test
3. Galvanized Treatment Thickness Uniform
Company And Factory Profiles :
It Was Founded In 1991 ,Covers An Area Of 39000 Square Meters . These Year We Pay More Attention To Our Quality System ,More Than 10 Senior And Intermediate Engineering And Technical Personnel Are Working In The Factory. It Has 3 Casting Produce Line,The Annual Output Raw Fittings About 8000tons One Year ,One Day Can Be 70tons Of Molten Iron . As Per a Traditional Manufacturing Industry ,No Matter The Equipment Or The Output ,We Are The More Advanced .
Malleable Iron Pipe Fitting Production Process :
Advanced equipment ，factory hired professional and technical personnel engaged in product development, design,and production .
The process is decomposed into a series of steps, each representing a quality control .Below Pictures Show The Details :
Quality Certificate
The Fittings and factory manage system With ISO 9001 standard . The certificate Issued By BSI . And FM Approved As Follows :
Packing Details :
Inner is PE waterproof bag , with stronger export standard out carton.For one 20GP container , with pallets are 1008cartons , 28pallets ,Without pallets are 1300 cartons .Based on your requirements .
If your quantity is over 2500 cartons , the packing can print your information .
Malleable Iron Pipe Fittings Application :
The Fittings can be used for civil water pipe connection, craft making ,Fire fighting projects etc.
